机器学习中，使用NMS对框取优

机器学习中，使用NMS对框取优

一、NMS实现代码

# http://www.pyimagesearch.com/2015/02/16/faster-non-maximum-suppression-python/

import numpy as np


class NMSuppression(object):
    def __init__(self, bbs, overlapThreshold = 0.45):
        self.bbs = bbs
        self.overlapThreshold = overlapThreshold

    def _check_empty(self):
        # return an empty list, if there are no boxes
        if len(self.bbs) == 0:
            return []
        else:
            return self.bbs

    def _check_dtype(self):
        # if the bounding boxes integers, convert them to floats (divisions)
        if self.bbs.dtype.kind == "i":
            self.bbs = self.bbs.astype("float")
        return self.bbs

    def bb_coordinates(self):
        # get the coordinates of the bounding boxes
        x1 = self.bbs[:, 0]
        y1 = self.bbs[:, 1]
        x2 = self.bbs[:, 2]
        y2 = self.bbs[:, 3]
        return x1, y1, x2, y2

    def bb_area(self):
        # compute the area of the bounding boxes
        x1, y1, x2, y2 = self.bb_coordinates()
        area = (x2 - x1 + 1) * (y2 - y1 + 1)
        return area

    def calc_ovarlap(self, x1, y1, x2, y2, idxs, last, i, area):
        # find the largest (x, y) coordinates for the start of
        # the bounding box and the smallest (x, y) coordinates
        # for the end of the bounding box
        xx1 = np.maximum(x1[i], x1[idxs[:last]])
        yy1 = np.maximum(y1[i], y1[idxs[:last]])
        xx2 = np.minimum(x2[i], x2[idxs[:last]])
        yy2 = np.minimum(y2[i], y2[idxs[:last]])

        # compute the width and height of the bounding box
        w = np.maximum(0, xx2 - xx1 + 1)
        h = np.maximum(0, yy2 - yy1 + 1)

        # compute the ratio of overlap
        overlap = (w * h) / area[idxs[:last]]

        return overlap

    def slow_suppress(self):
        self._check_empty()
        self._check_dtype()

        # initialize the list of picked indexes
        picked = []

        x1, y1, x2, y2 = self.bb_coordinates()

        # compute the area of the bounding boxes
        area = self.bb_area()

        # sort the bounding boxes by the bottom-right y-coordinate of the bounding box
        idxs = np.argsort(y2)

        # keep looping while some indexes still remain in the indexes list
        while len(idxs) > 0:
            # grab the last index in the indexes list, add the index
            # value to the list of picked indexes, then initialize
            # the suppression list (i.e. indexes that will be deleted)
            # using the last index
            last = len(idxs) - 1
            i = idxs[last]
            picked.append(i)
            suppress = [last]

            # loop over all indexes in the indexes list
            for pos in xrange(0, last):
                # grab the current index
                j = idxs[pos]

                # find the largest (x, y) coordinates for the start of
                # the bounding box and the smallest (x, y) coordinates
                # for the end of the bounding box
                xx1 = max(x1[i], x1[j])
                yy1 = max(y1[i], y1[j])
                xx2 = min(x2[i], x2[j])
                yy2 = min(y2[i], y2[j])

                # compute the width and height of the bounding box
                w = max(0, xx2 - xx1 + 1)
                h = max(0, yy2 - yy1 + 1)

                # compute the ratio of overlap between the computed
                # bounding box and the bounding box in the area list
                overlap = float(w * h) / area[j]

                # if there is sufficient overlap, suppress the
                # current bounding box
                if overlap > self.overlapThreshold:
                    suppress.append(pos)

            # delete all indexes from the index list that are in the
            # suppression list
            idxs = np.delete(idxs, suppress)

        # return only the bounding boxes that were picked
        return self.bbs[picked]

    def fast_suppress(self):
        self._check_empty()
        self._check_dtype()

        # initialize the list of picked indexes
        picked = []

        x1, y1, x2, y2 = self.bb_coordinates()

        # compute the area of the bounding boxes
        area = self.bb_area()

        # sort the bounding boxes by the bottom-right y-coordinate of the bounding box
        idxs = np.argsort(y2)

        # keep looping while some indexes still remain in the indexes list
        while len(idxs) > 0:
            # take the last index in the indexes list and add the
            # index value to the list of picked indexes
            last = len(idxs) - 1
            i = idxs[last]
            picked.append(i)

            overlap = self.calc_ovarlap(x1, y1, x2, y2, idxs, last, i, area)

            # delete all indexes from the index list that have
            idxs = np.delete(idxs, np.concatenate(([last], np.where(overlap > self.overlapThreshold)[0])))

            # return only the bounding boxes that were picked using the
            # integer data type

        return self.bbs[picked].astype("int")

二、调用测试

#taken from: http://www.pyimagesearch.com/2014/11/17/non-maximum-suppression-object-detection-python
"""
Project parts (taken from the tutorial above):
1.    Sampling positive images
2.    Sampling negative images
3.    Training a Linear SVM
4.    Performing hard-negative mining
5.    Re-training your Linear SVM using the hard-negative samples
6.    Evaluating your classifier on your test dataset, utilizing non-maximum
        suppression to ignore redundant, overlapping bounding boxes

The sample images in this project are taken from the web (labeled as: no licensing needed for non-comertial use).
"""

from nm_suppression import NMSuppression
import numpy as np
import cv2


# construct a list containing the images that will be examined
# along with their respective bounding boxes
images = [
    ("images/africa.jpeg", np.array([
        (12, 84, 140, 212),
        (24, 84, 152, 212),
        (36, 84, 164, 212),
        (12, 96, 140, 224),
        (24, 96, 152, 224),
        (24, 108, 152, 236)])),
    ("images/girl.jpeg", np.array([
        (114, 60, 178, 124),
        (120, 60, 184, 124),
        (114, 66, 178, 130)])),
    ("images/monroe.jpeg", np.array([
        (12, 30, 76, 94),
        (12, 36, 76, 100),
        (72, 36, 200, 164),
        (84, 48, 212, 176)]))]

# loop over the images
for (imagePath, boundingBoxes) in images:
    # load the image and clone it
    print "[x] %d initial bounding boxes" % (len(boundingBoxes))
    image = cv2.imread(imagePath)
    orig = image.copy()

    # loop over the bounding boxes for each image and draw them
    for (startX, startY, endX, endY) in boundingBoxes:
        cv2.rectangle(orig, (startX, startY), (endX, endY), (0, 0, 255), 2)

    # perform non-maximum suppression on the bounding boxes
    p = NMSuppression(bbs=boundingBoxes, overlapThreshold=0.5)
    pick = p.fast_suppress()
    print "[x] after applying non-maximum, %d bounding boxes" % (len(pick))

    # loop over the picked bounding boxes and draw them
    for (startX, startY, endX, endY) in pick:
        cv2.rectangle(image, (startX, startY), (endX, endY), (0, 255, 0), 2)

    # display the images
    cv2.imshow("Original", orig)
    cv2.imshow("After NMS", image)
    cv2.waitKey(0)

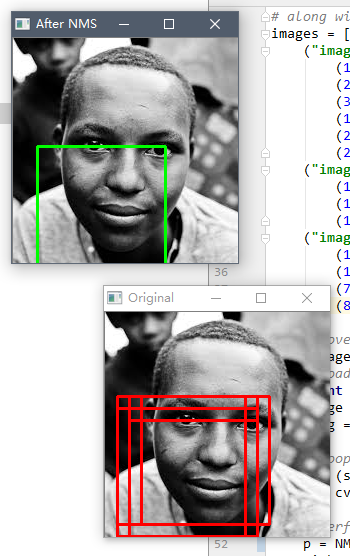

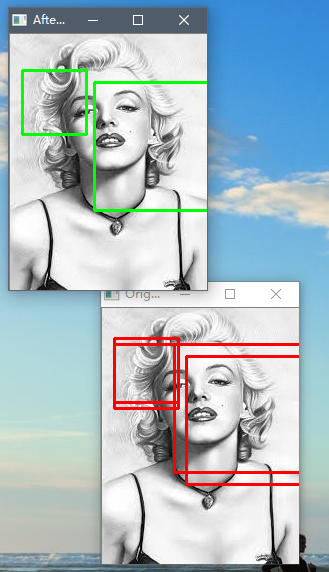

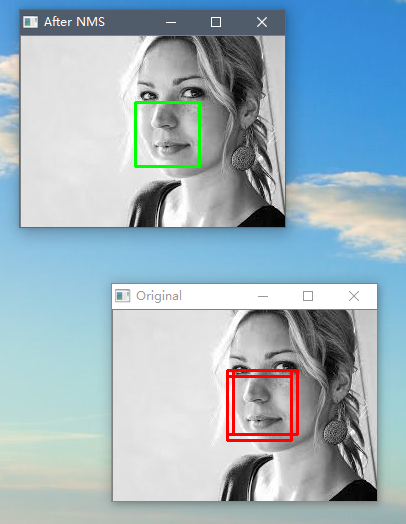

三、效果
