使用Deeplearning4j训练YOLOV2模型

使用Deeplearning4j训练YOLOV2模型

一、引入pom.xml依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>cn.dearcloud</groupId>
    <artifactId>train-yolo-for-java</artifactId>
    <version>1.0-SNAPSHOT</version>


    <dependencies>
        <dependency>
            <groupId>org.deeplearning4j</groupId>
            <artifactId>deeplearning4j-zoo</artifactId>
            <version>1.0.0-beta</version>
        </dependency>
        <dependency>
            <groupId>org.deeplearning4j</groupId>
            <artifactId>deeplearning4j-modelimport</artifactId>
            <version>1.0.0-beta</version>
        </dependency>
        <!--GPU-->
        <dependency>
            <groupId>org.nd4j</groupId>
            <artifactId>nd4j-cuda-8.0-platform</artifactId>
            <version>1.0.0-beta</version>
        </dependency>
        <dependency>
            <groupId>org.deeplearning4j</groupId>
            <artifactId>deeplearning4j-cuda-8.0</artifactId>
            <version>1.0.0-beta</version>
        </dependency>
        <!--CPU-->
        <!--<dependency>-->
            <!--<groupId>org.nd4j</groupId>-->
            <!--<artifactId>nd4j-native-platform</artifactId>-->
            <!--<version>1.0.0-beta</version>-->
        <!--</dependency>-->
        <!--Log-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.22</version>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-slf4j-impl</artifactId>
            <version>2.11.0</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.7.0</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

二、读取数据集

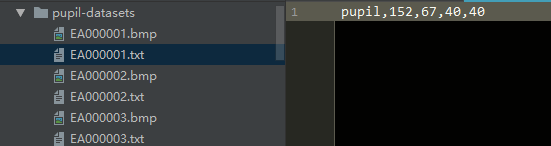

假设，数据集文件夹所在路径如下，下面有图片和图片同名的txt文件中记录标注对像。一行一个标注对像，每行依次是：Label,X,Y,Width,Height

　　D:\\Project\\AIProject\\train-yolo-for-java\\docs\\pupil-datasets

三、编写标注加载代码

package cn.dearcloud.provider;

import org.apache.commons.io.FileUtils;
import org.apache.commons.io.FilenameUtils;
import org.datavec.image.recordreader.objdetect.ImageObject;
import org.datavec.image.recordreader.objdetect.ImageObjectLabelProvider;

import java.io.File;
import java.net.URI;
import java.util.ArrayList;
import java.util.List;

public class CnnLabelProvider implements ImageObjectLabelProvider {

    public CnnLabelProvider() {
    }

    @Override
    public List<ImageObject> getImageObjectsForPath(String path) {
        try {
            List<ImageObject> imageObjects = new ArrayList<>();
            File labelFile = new File(FilenameUtils.getFullPath(path), FilenameUtils.getBaseName(path) + ".txt");
            List<String> lines = FileUtils.readLines(labelFile, "UTF-8");
            for (String line : lines) {
                //label,x,y,w,h
                String[] arr = line.split(",");
                if (arr.length == 5) {
                    String labelName = arr[0];
                    int x = Integer.parseInt(arr[1]);
                    int y = Integer.parseInt(arr[2]);
                    int w = Integer.parseInt(arr[3]);
                    int h = Integer.parseInt(arr[4]);
                    imageObjects.add(new ImageObject(x, y, x + w, y + h, labelName));
                }
            }
            return imageObjects;
        } catch (Exception ex) {
            throw new RuntimeException(ex);
        }
    }

    @Override
    public List<ImageObject> getImageObjectsForPath(URI uri) {
        return getImageObjectsForPath(new File(uri).getPath());
    }
}

四、编写YoloV2训练代码

package cn.dearcloud;

import cn.dearcloud.provider.CnnLabelProvider;
import lombok.extern.log4j.Log4j2;
import org.bytedeco.javacpp.opencv_core;
import org.bytedeco.javacpp.opencv_imgproc;
import org.bytedeco.javacv.CanvasFrame;
import org.bytedeco.javacv.OpenCVFrameConverter;
import org.datavec.api.records.metadata.RecordMetaDataImageURI;
import org.datavec.api.split.FileSplit;
import org.datavec.api.split.InputSplit;
import org.datavec.image.loader.NativeImageLoader;
import org.datavec.image.recordreader.objdetect.ObjectDetectionRecordReader;
import org.deeplearning4j.datasets.datavec.RecordReaderDataSetIterator;
import org.deeplearning4j.nn.api.OptimizationAlgorithm;
import org.deeplearning4j.nn.conf.ConvolutionMode;
import org.deeplearning4j.nn.conf.GradientNormalization;
import org.deeplearning4j.nn.conf.WorkspaceMode;
import org.deeplearning4j.nn.conf.inputs.InputType;
import org.deeplearning4j.nn.conf.layers.ConvolutionLayer;
import org.deeplearning4j.nn.conf.layers.objdetect.Yolo2OutputLayer;
import org.deeplearning4j.nn.graph.ComputationGraph;
import org.deeplearning4j.nn.layers.objdetect.DetectedObject;
import org.deeplearning4j.nn.modelimport.keras.KerasLayer;
import org.deeplearning4j.nn.modelimport.keras.layers.convolutional.KerasSpaceToDepth;
import org.deeplearning4j.nn.transferlearning.FineTuneConfiguration;
import org.deeplearning4j.nn.transferlearning.TransferLearning;
import org.deeplearning4j.nn.weights.WeightInit;
import org.deeplearning4j.util.ModelSerializer;
import org.deeplearning4j.zoo.model.YOLO2;
import org.nd4j.linalg.activations.Activation;
import org.nd4j.linalg.api.ndarray.INDArray;
import org.nd4j.linalg.dataset.api.preprocessor.ImagePreProcessingScaler;
import org.nd4j.linalg.learning.config.Adam;

import java.io.File;
import java.io.IOException;
import java.util.List;
import java.util.Random;

import static org.bytedeco.javacpp.opencv_core.FONT_HERSHEY_DUPLEX;
import static org.bytedeco.javacpp.opencv_imgproc.resize;
import static org.opencv.core.CvType.CV_8U;

@Log4j2
public class Yolo2Trainer {
    // parameters matching the pretrained TinyYOLO model
    int width = 480;
    int height = 320;
    int nChannels = 3;
    int gridWidth = 15;
    int gridHeight = 10;
    int nClasses = 1;
    int nBoxes = 5;
    double lambdaNoObj = 0.5;
    double lambdaCoord = 5.0;
    double[][] priorBoxes = {{1.08, 1.19}, {3.42, 4.41}, {6.63, 11.38}, {9.42, 5.11}, {16.62, 10.52}};
    double detectionThreshold = 0.3;
    // parameters for the training phase
    int batchSize = 1;
    int nEpochs = 50;
    double learningRate = 1e-3;
    double lrMomentum = 0.9;

    public void read() throws IOException, InterruptedException {
        String datasetsDir = "D:\\Project\\AIProject\\train-yolo-for-java\\docs\\pupil-datasets";
        File imageDir = new File(datasetsDir);

        log.info("Load data...");
        //切分数据集
        Random rng = new Random();
        FileSplit fileSplit = new FileSplit(imageDir, NativeImageLoader.ALLOWED_FORMATS, rng);
        InputSplit[] data = fileSplit.sample(null, 0.8, 0.2);
        InputSplit trainData = data[0];
        InputSplit testData = data[1];


        //自己实现ImageObjectLabelProvider接口
        CnnLabelProvider labelProvider = new CnnLabelProvider();
        ObjectDetectionRecordReader trainRecordReader = new ObjectDetectionRecordReader(height, width, nChannels, gridHeight, gridWidth, labelProvider);
        trainRecordReader.initialize(trainData);//returned values: 4d array, with dimensions [minibatch, 4+C, h, w]
        ObjectDetectionRecordReader testRecordReader = new ObjectDetectionRecordReader(height, width, nChannels, gridHeight, gridWidth, labelProvider);
        testRecordReader.initialize(testData);

        // ObjectDetectionRecordReader performs regression, so we need to specify it here
        RecordReaderDataSetIterator trainDataSetIterator = new RecordReaderDataSetIterator(trainRecordReader, batchSize, 1, 1, true);
        trainDataSetIterator.setPreProcessor(new ImagePreProcessingScaler(0, 1));

        RecordReaderDataSetIterator testDataSetIterator = new RecordReaderDataSetIterator(testRecordReader, 1, 1, 1, true);
        testDataSetIterator.setPreProcessor(new ImagePreProcessingScaler(0, 1));

        ComputationGraph model;
        String modelFilename = "model_surface_YOLO2.zip";
        if (new File(modelFilename).exists()) {
            log.info("Load model...");
            model = ModelSerializer.restoreComputationGraph(modelFilename);
        } else {
            ComputationGraph pretrained = (ComputationGraph) YOLO2.builder().build().initPretrained();
            INDArray priors = org.nd4j.linalg.factory.Nd4j.create(priorBoxes);
            FineTuneConfiguration fineTuneConf = new FineTuneConfiguration.Builder()
                    .seed(1234)
                    .optimizationAlgo(OptimizationAlgorithm.STOCHASTIC_GRADIENT_DESCENT)
                    .gradientNormalization(GradientNormalization.RenormalizeL2PerLayer)
                    .gradientNormalizationThreshold(1.0)
                    .updater(new Adam.Builder().learningRate(1e-3).build())
                    .l2(0.00001)
                    .activation(Activation.IDENTITY)
                    .trainingWorkspaceMode(WorkspaceMode.ENABLED)
                    .inferenceWorkspaceMode(WorkspaceMode.ENABLED)
                    .build();

            model = new TransferLearning.GraphBuilder(pretrained).fineTuneConfiguration(fineTuneConf).removeVertexKeepConnections("conv2d_23")
                    .addLayer("convolution2d_23",
                            new ConvolutionLayer.Builder(1, 1)
                                    .nIn(1024)
                                    .nOut(nBoxes * (5 + nClasses))
                                    .stride(1, 1)
                                    .convolutionMode(ConvolutionMode.Same)
                                    .weightInit(WeightInit.UNIFORM)
                                    .hasBias(false)
                                    .activation(Activation.IDENTITY)
                                    .build(),
                            "leaky_re_lu_22")
                    .addLayer("outputs",
                            new Yolo2OutputLayer.Builder()
                                    .boundingBoxPriors(priors)
                                    .lambbaNoObj(lambdaNoObj).lambdaCoord(lambdaCoord)
                                    .build(),
                            "convolution2d_23")
                    .setOutputs("outputs")
                    .build();

            System.out.println(model.summary(InputType.convolutional(width, height, nChannels)));

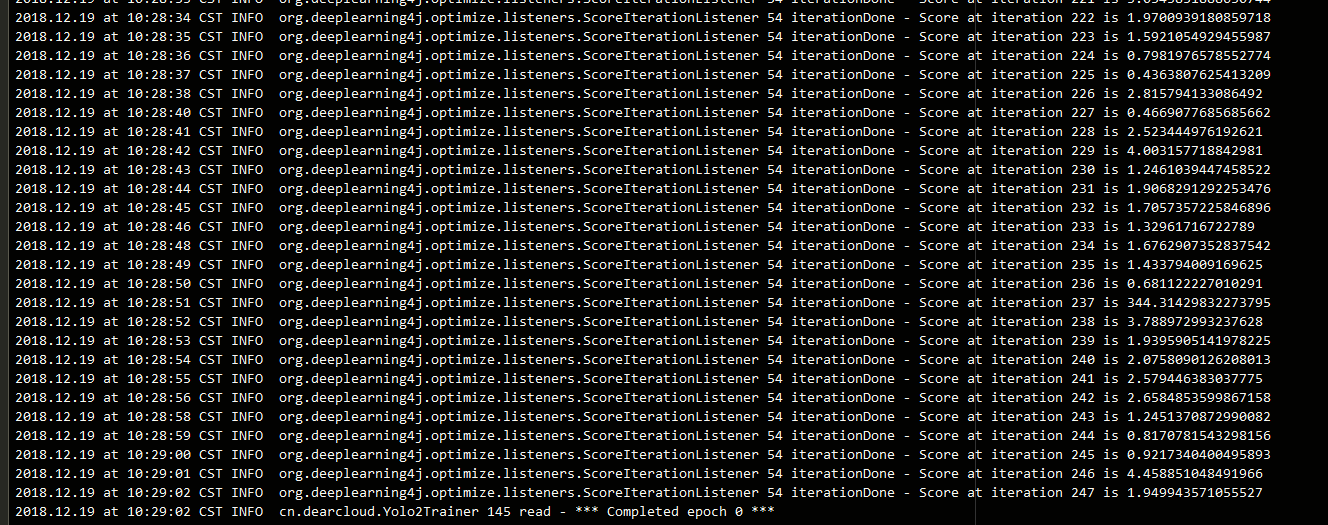

            //设置训练时输出
            model.setListeners(new org.deeplearning4j.optimize.listeners.ScoreIterationListener(1));
            //开始训练
            for (int i = 0; i < nEpochs; i++) {
                trainDataSetIterator.reset();
                while (trainDataSetIterator.hasNext()) {
                    model.fit(trainDataSetIterator.next());
                }
                log.info("*** Completed epoch {} ***", i);
            }
            ModelSerializer.writeModel(model, modelFilename, true);
        }

        // 可视化与测试
        NativeImageLoader imageLoader = new NativeImageLoader();
        CanvasFrame frame = new CanvasFrame("RedBloodCellDetection");
        OpenCVFrameConverter.ToMat converter = new OpenCVFrameConverter.ToMat();
        org.deeplearning4j.nn.layers.objdetect.Yolo2OutputLayer yout = (org.deeplearning4j.nn.layers.objdetect.Yolo2OutputLayer) model.getOutputLayer(0);
        List<String> labels = trainDataSetIterator.getLabels();
        testDataSetIterator.setCollectMetaData(true);
        while (testDataSetIterator.hasNext() && frame.isVisible()) {
            org.nd4j.linalg.dataset.DataSet ds = testDataSetIterator.next();
            RecordMetaDataImageURI metadata = (RecordMetaDataImageURI) ds.getExampleMetaData().get(0);
            INDArray features = ds.getFeatures();
            INDArray results = model.outputSingle(features);
            List<DetectedObject> objs = yout.getPredictedObjects(results, detectionThreshold);
            File file = new File(metadata.getURI());
            log.info(file.getName() + ": " + objs);

            opencv_core.Mat mat = imageLoader.asMat(features);
            opencv_core.Mat convertedMat = new opencv_core.Mat();
            mat.convertTo(convertedMat, CV_8U, 255, 0);
            int w = metadata.getOrigW() * 2;
            int h = metadata.getOrigH() * 2;
            opencv_core.Mat image = new opencv_core.Mat();
            resize(convertedMat, image, new opencv_core.Size(w, h));
            for (DetectedObject obj : objs) {
                double[] xy1 = obj.getTopLeftXY();
                double[] xy2 = obj.getBottomRightXY();
                String label = labels.get(obj.getPredictedClass());
                int x1 = (int) Math.round(w * xy1[0] / gridWidth);
                int y1 = (int) Math.round(h * xy1[1] / gridHeight);
                int x2 = (int) Math.round(w * xy2[0] / gridWidth);
                int y2 = (int) Math.round(h * xy2[1] / gridHeight);
                opencv_imgproc.rectangle(image, new opencv_core.Point(x1, y1), new opencv_core.Point(x2, y2), opencv_core.Scalar.RED);
                opencv_imgproc.putText(image, label, new opencv_core.Point(x1 + 2, y2 - 2), FONT_HERSHEY_DUPLEX, 1, opencv_core.Scalar.GREEN);
            }
            frame.setTitle(new File(metadata.getURI()).getName() + " - RedBloodCellDetection");
            frame.setCanvasSize(w, h);
            frame.showImage(converter.convert(image));
            frame.waitKey();
        }
        frame.dispose();
    }
}

五、顺便给大家写写TinyYolo的训练代码

package cn.dearcloud;

import lombok.extern.log4j.Log4j2;
import org.bytedeco.javacpp.opencv_core;
import org.bytedeco.javacpp.opencv_imgproc;
import org.bytedeco.javacv.CanvasFrame;
import org.bytedeco.javacv.OpenCVFrameConverter;
import org.datavec.api.io.filters.RandomPathFilter;
import org.datavec.api.records.metadata.RecordMetaDataImageURI;
import org.datavec.api.split.FileSplit;
import org.datavec.api.split.InputSplit;
import org.datavec.image.loader.NativeImageLoader;
import org.datavec.image.recordreader.objdetect.ObjectDetectionRecordReader;
import org.datavec.image.recordreader.objdetect.impl.VocLabelProvider;
import org.deeplearning4j.datasets.datavec.RecordReaderDataSetIterator;
import org.deeplearning4j.nn.api.OptimizationAlgorithm;
import org.deeplearning4j.nn.conf.ConvolutionMode;
import org.deeplearning4j.nn.conf.GradientNormalization;
import org.deeplearning4j.nn.conf.WorkspaceMode;
import org.deeplearning4j.nn.conf.layers.ConvolutionLayer;
import org.deeplearning4j.nn.conf.layers.objdetect.Yolo2OutputLayer;
import org.deeplearning4j.nn.graph.ComputationGraph;
import org.deeplearning4j.nn.layers.objdetect.DetectedObject;
import org.deeplearning4j.nn.transferlearning.FineTuneConfiguration;
import org.deeplearning4j.nn.transferlearning.TransferLearning;
import org.deeplearning4j.nn.weights.WeightInit;
import org.deeplearning4j.util.ModelSerializer;
import org.deeplearning4j.zoo.model.TinyYOLO;
import org.deeplearning4j.zoo.model.YOLO2;
import org.nd4j.linalg.activations.Activation;
import org.nd4j.linalg.api.ndarray.INDArray;
import org.nd4j.linalg.dataset.api.preprocessor.ImagePreProcessingScaler;
import org.nd4j.linalg.io.ClassPathResource;
import org.nd4j.linalg.learning.config.Nesterovs;

import java.io.File;
import java.io.IOException;
import java.net.URI;
import java.net.URISyntaxException;
import java.util.List;
import java.util.Random;

import static org.bytedeco.javacpp.opencv_core.FONT_HERSHEY_DUPLEX;
import static org.bytedeco.javacpp.opencv_imgproc.resize;
import static org.opencv.core.CvType.CV_8U;

/**
 * 参考：https://blog.csdn.net/u011669700/article/details/79886619 实现
 */
@Log4j2
public class TinyYoloTrainer {
    // parameters matching the pretrained TinyYOLO model
    int width = 416;
    int height = 416;
    int nChannels = 3;
    int gridWidth = 13;
    int gridHeight = 13;
    int numClasses = 1;
    // parameters for the Yolo2OutputLayer
    int nBoxes = 5;
    double lambdaNoObj = 0.5;
    double lambdaCoord = 5.0;
    double[][] priorBoxes = {{2, 2}, {2, 2}, {2, 2}, {2, 2}, {2, 2}};
    double detectionThreshold = 0.3;
    // parameters for the training phase
    int batchSize = 2;
    int nEpochs = 50;
    double learningRate = 1e-3;
    double lrMomentum = 0.9;

    public void read() throws IOException, InterruptedException {
        String dataDir = new ClassPathResource("/datasets").getFile().getPath();
        File imageDir = new File(dataDir, "JPEGImages");

        log.info("Load data...");
        //切分数据集
        Random rng = new Random();
        FileSplit fileSplit = new org.datavec.api.split.FileSplit(imageDir, NativeImageLoader.ALLOWED_FORMATS, rng);
        InputSplit[] data = fileSplit.sample(new RandomPathFilter(rng) {
            @Override
            protected boolean accept(String name) {
                boolean isXmlExist = false;
                try {
                    isXmlExist = new File(new URI(name.replace("JPEGImages", "Annotations").replace(".jpg", ".xml"))).exists();
                } catch (URISyntaxException e) {
                    e.printStackTrace();
                }
                return isXmlExist;
            }
        }, 0.8, 0.2);
        InputSplit trainData = data[0];
        InputSplit testData = data[1];

        //用于解析识别voc方式的label方式，也可以自己实现ImageObjectLabelProvider接口
        VocLabelProvider labelProvider = new VocLabelProvider(dataDir);
        ObjectDetectionRecordReader trainRecordReader = new org.datavec.image.recordreader.objdetect.ObjectDetectionRecordReader(height, width, nChannels, gridHeight, gridWidth, labelProvider);
        trainRecordReader.initialize(trainData);//returned values: 4d array, with dimensions [minibatch, 4+C, h, w]
        ObjectDetectionRecordReader testRecordReader = new org.datavec.image.recordreader.objdetect.ObjectDetectionRecordReader(height, width, nChannels, gridHeight, gridWidth, labelProvider);
        testRecordReader.initialize(testData);

        // ObjectDetectionRecordReader performs regression, so we need to specify it here
        RecordReaderDataSetIterator trainDataSetIterator = new org.deeplearning4j.datasets.datavec.RecordReaderDataSetIterator(trainRecordReader, batchSize, 1, 1, true);
        trainDataSetIterator.setPreProcessor(new ImagePreProcessingScaler(0, 1, 8));

        RecordReaderDataSetIterator testDataSetIterator = new org.deeplearning4j.datasets.datavec.RecordReaderDataSetIterator(testRecordReader, batchSize, 1, 1, true);
        testDataSetIterator.setPreProcessor(new ImagePreProcessingScaler(0, 1, 8));


        String modelFilename = "model_yolov2.zip";
        ComputationGraph pretrained = (ComputationGraph) TinyYOLO.builder().build().initPretrained();
        INDArray priors = org.nd4j.linalg.factory.Nd4j.create(priorBoxes);

        FineTuneConfiguration fineTuneConfiguration = new org.deeplearning4j.nn.transferlearning.FineTuneConfiguration.Builder()
                .seed(100)
                .optimizationAlgo(OptimizationAlgorithm.STOCHASTIC_GRADIENT_DESCENT)
                .gradientNormalization(GradientNormalization.RenormalizeL2PerLayer)
                .gradientNormalizationThreshold(1.0)
                .updater(Nesterovs.builder().learningRate(learningRate).momentum(lrMomentum).build())
                .activation(Activation.IDENTITY)
                .trainingWorkspaceMode(WorkspaceMode.ENABLED)
                .inferenceWorkspaceMode(WorkspaceMode.ENABLED)
                .build();

        ComputationGraph model = new TransferLearning.GraphBuilder(pretrained).fineTuneConfiguration(fineTuneConfiguration).removeVertexKeepConnections("conv2d_9")
                .addLayer("convolution2d_9",
                        new ConvolutionLayer.Builder(1, 1)
                                .nIn(1024)
                                .nOut(nBoxes * (5 + numClasses))
                                .stride(1, 1)
                                .convolutionMode(ConvolutionMode.Same)
                                .weightInit(WeightInit.UNIFORM)
                                .hasBias(false)
                                .activation(Activation.IDENTITY)
                                .build(),
                        "leaky_re_lu_8")
                .addLayer("outputs", new Yolo2OutputLayer.Builder().lambbaNoObj(lambdaNoObj).lambdaCoord(lambdaCoord).boundingBoxPriors(priors).build(),
                        "convolution2d_9")
                .setOutputs("outputs")
                .build();
        //设置训练时输出
        model.setListeners(new org.deeplearning4j.optimize.listeners.ScoreIterationListener(1));
        //开始训练
        for (int i = 0; i < nEpochs; i++) {
            trainDataSetIterator.reset();
            while (trainDataSetIterator.hasNext()) {
                model.fit(trainDataSetIterator.next());
            }
            log.info("*** Completed epoch {} ***", i);
        }
        ModelSerializer.writeModel(model, modelFilename, true);


        // 可视化与测试
        NativeImageLoader imageLoader = new NativeImageLoader();
        CanvasFrame frame = new CanvasFrame("RedBloodCellDetection");
        OpenCVFrameConverter.ToMat converter = new OpenCVFrameConverter.ToMat();
        org.deeplearning4j.nn.layers.objdetect.Yolo2OutputLayer yout = (org.deeplearning4j.nn.layers.objdetect.Yolo2OutputLayer) model.getOutputLayer(0);
        List<String> labels = trainDataSetIterator.getLabels();
        testDataSetIterator.setCollectMetaData(true);
        while (testDataSetIterator.hasNext() && frame.isVisible()) {
            org.nd4j.linalg.dataset.DataSet ds = testDataSetIterator.next();
            RecordMetaDataImageURI metadata = (RecordMetaDataImageURI) ds.getExampleMetaData().get(0);
            INDArray features = ds.getFeatures();
            INDArray results = model.outputSingle(features);
            List<DetectedObject> objs = yout.getPredictedObjects(results, detectionThreshold);
            File file = new File(metadata.getURI());
            log.info(file.getName() + ": " + objs);

            opencv_core.Mat mat = imageLoader.asMat(features);
            opencv_core.Mat convertedMat = new opencv_core.Mat();
            mat.convertTo(convertedMat, CV_8U, 255, 0);
            int w = metadata.getOrigW() * 2;
            int h = metadata.getOrigH() * 2;
            opencv_core.Mat image = new opencv_core.Mat();
            resize(convertedMat, image, new opencv_core.Size(w, h));
            for (DetectedObject obj : objs) {
                double[] xy1 = obj.getTopLeftXY();
                double[] xy2 = obj.getBottomRightXY();
                String label = labels.get(obj.getPredictedClass());
                int x1 = (int) Math.round(w * xy1[0] / gridWidth);
                int y1 = (int) Math.round(h * xy1[1] / gridHeight);
                int x2 = (int) Math.round(w * xy2[0] / gridWidth);
                int y2 = (int) Math.round(h * xy2[1] / gridHeight);
                opencv_imgproc.rectangle(image, new opencv_core.Point(x1, y1), new opencv_core.Point(x2, y2), opencv_core.Scalar.RED);
                opencv_imgproc.putText(image, label, new opencv_core.Point(x1 + 2, y2 - 2), FONT_HERSHEY_DUPLEX, 1, opencv_core.Scalar.GREEN);
            }
            frame.setTitle(new File(metadata.getURI()).getName() + " - RedBloodCellDetection");
            frame.setCanvasSize(w, h);
            frame.showImage(converter.convert(image));
            frame.waitKey();
        }
        frame.dispose();
    }
}

日志如下：
